FS8-C 8" Trim Saw
Full size 8"
trim saw. Equipped with
hinged cutting tables and
slide out coolant tanks.
Complete with blade, vise,
plastic hood, and 1/3 hp
motor.
#056-093
TS10-C
10" Trim Saw
Includes 10" diamond blade,
1/3 hp motor, plastic hood, vise and base. The worktable has a 14-1/4" x
16-5/8" work surface and centered blade.
#059-093

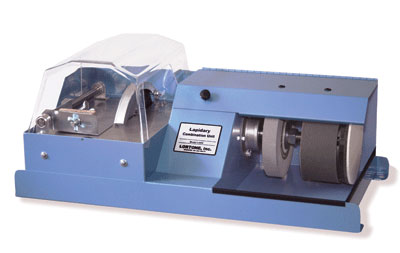

LU6X-130 Combination Unit
Use this machine where space is limited! It
combines the versatility of a trim saw and arbor in one unit. Complete
with 6" diamond blade, silicon carbide grinding wheel, sanding drum,
polishing head, 1/3 hp motor and accessory package.
#061-092
Lortone
LU6X-130 User Guide / Parts List

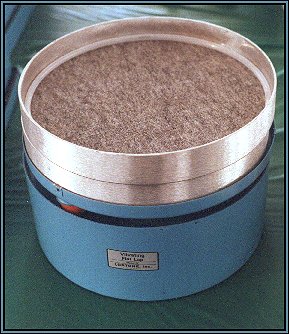

Vibrating Laps
Designed to polish slabs, geodes,
bookends, and clock faces. Heavy steel frame construction. Complete
with separate grinding and polishing pans. We suggest starting with
220 grit, then 600, and finally Tin Oxide.
FL15
#030-091
- 15" Lap
FL20
#030-092
- 20" Lap
|
LS18 Table Saw
A rugged, accurate, economical 18" slab saw proven by years of trouble free performance in commercial operations. The frame, drive guard, and tank
are of heavy gauge welded steel. The side window allows convenient monitoring of the cut. Adjustable feed rate of 9 1/2" to 19 1/4" per hour. Large cast aluminum vise opens to 7" and
rolls smoothly on steel carriage ways. Includes cutoff and
safety switches, sealed ball bearings, 3/4" arbor, and 2" drain. Complete with 18" standard blade and 1/2 hp heavy duty motor. Use with Oil only!
#055-090
Complete 8" Arbor Package
Stainless 8” Arbor Package
This complete Stainless Steel arbor package includes our 8”, 4 wheel
Arbor, attached adjustable drip water system
(2 qt. capacity),
and 1/3 hp overload-protected motor.
Dimensions: 22” W x 25” L x
18” H #034-092
Includes:
• 8 x
1-1/2” 100 & 220 mesh metal bond
Diamond wheels
• 8 x 3
Expandable Drums (2)
• 325, 600, 1,200, 3,000 mesh Diamond belts
• 8” Cast Aluminum Polish Heads (2)
• 14,000 mesh PSA Diamond
Disc
• 8” Felt Pad
• Drain System (4’ tubing & fitting)
Document Section (PDF)
Lortone
Lapidary Supply Price List
Manufacturer's Documents (PDF)
Model FS8C
Model TS8C
Model TS10C
LS18 Parts List
FL15/FL20 Vibrating Lap Instructions
Stainless Steel Arbor Parts List & Instructions
Classic (BA Series) Arbor Parts List & Instructions
Model LU6x-130 Combination Machine
Information for Discontinued Machines (PDF)
LS10 Saw Parts List
LS12 Saw Parts List
LS14
Saw Instructions
LSS14-P Saw (Panther) Parts List
|
